Water Wheel kit being assembled !
The axle, hubs & bearings
are placed on the
columns.

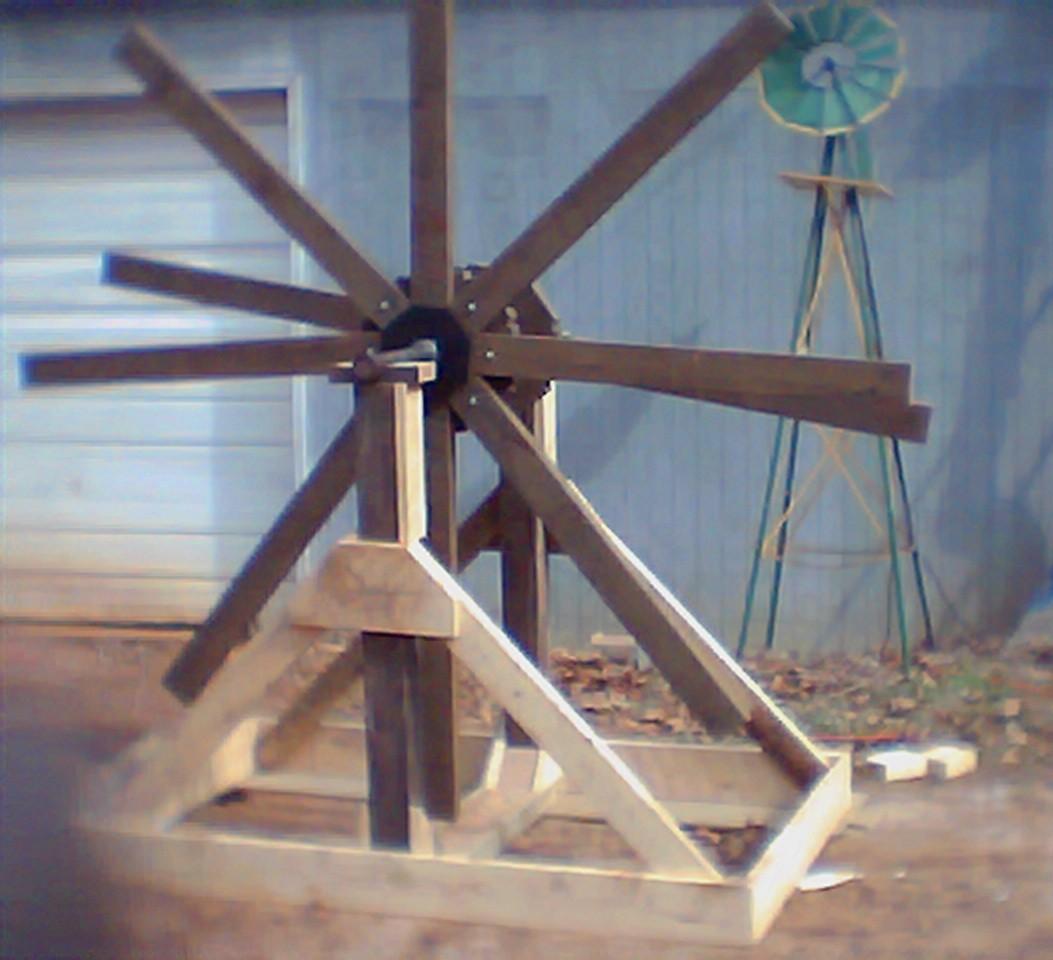

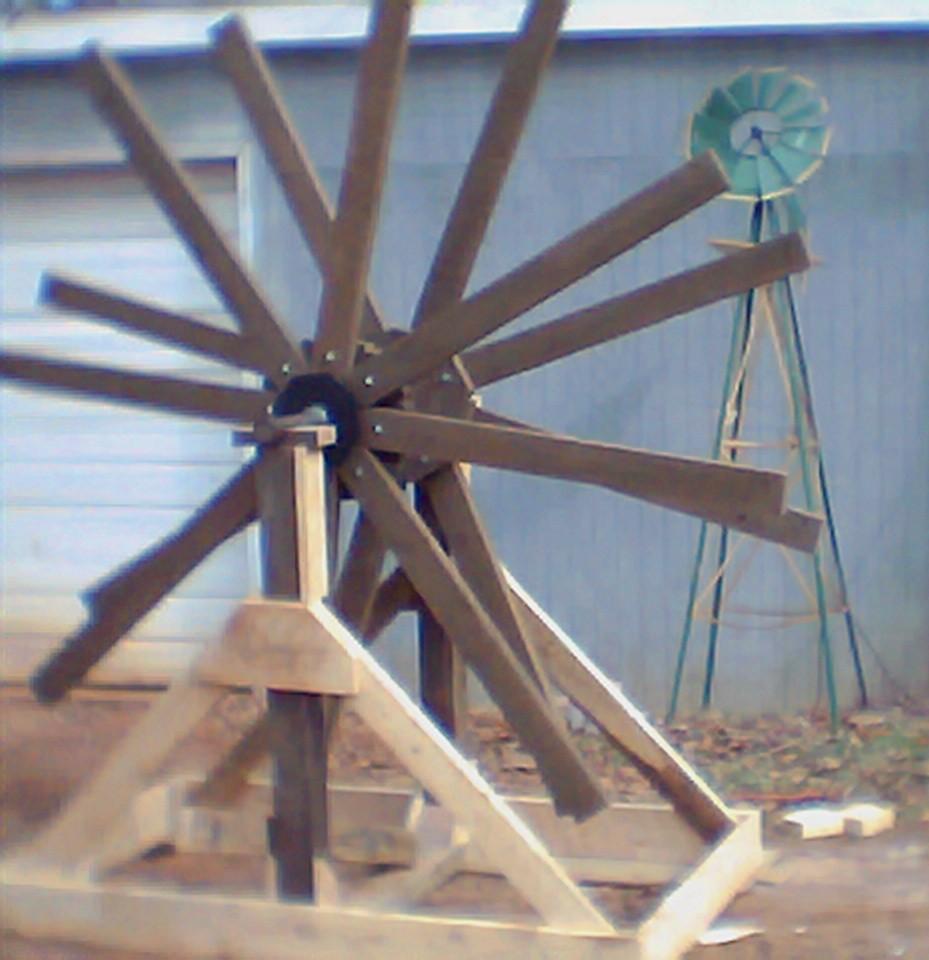

Spokes are added using pre-drilled holes.

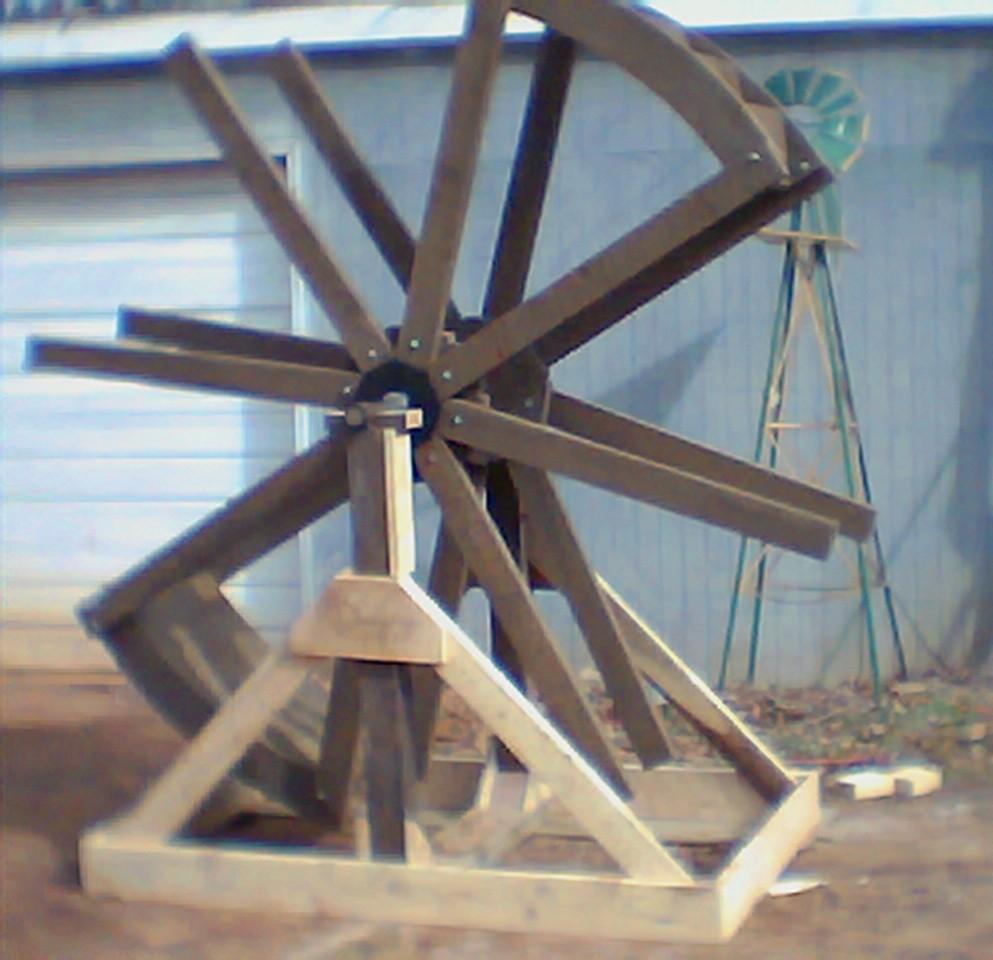

Sections are bolted to spokes
through pre-drilled holes.

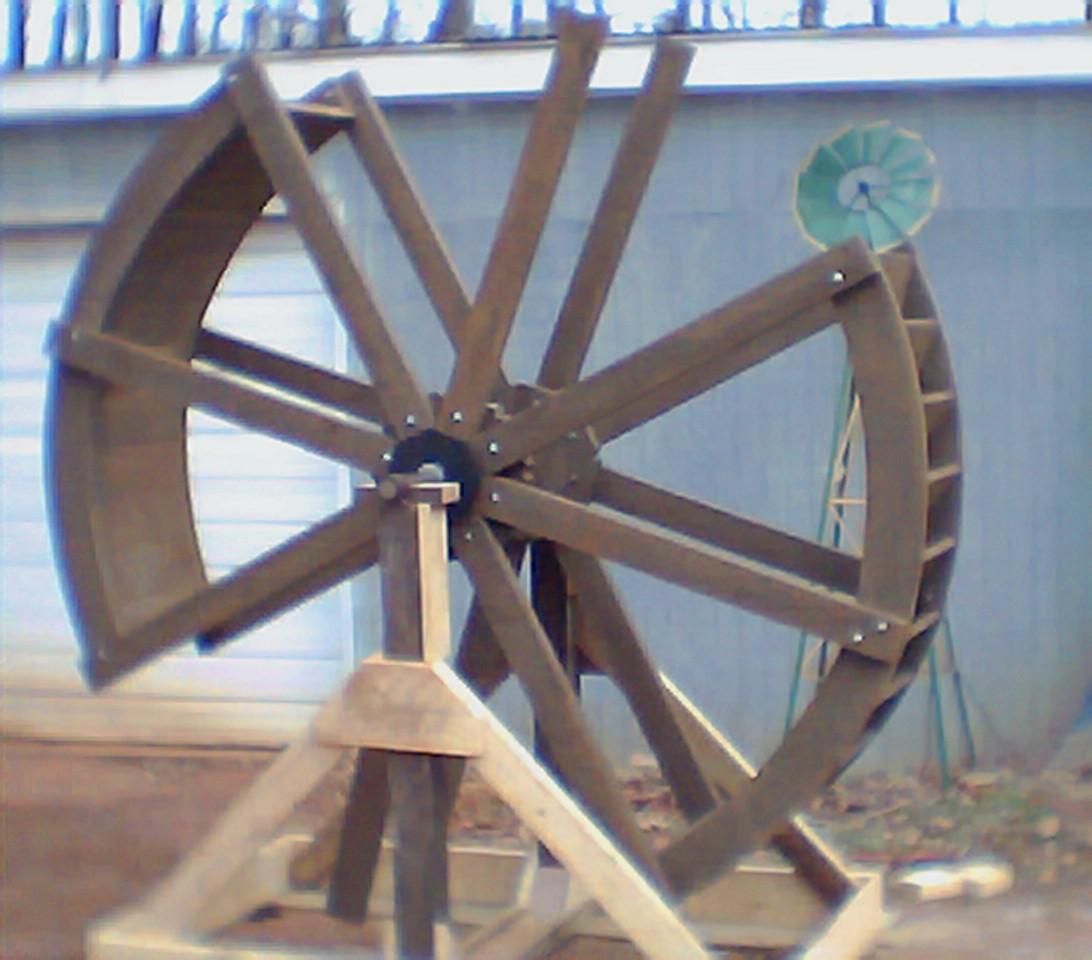

By staggering sections across from one
another, weight transfer is minimized.

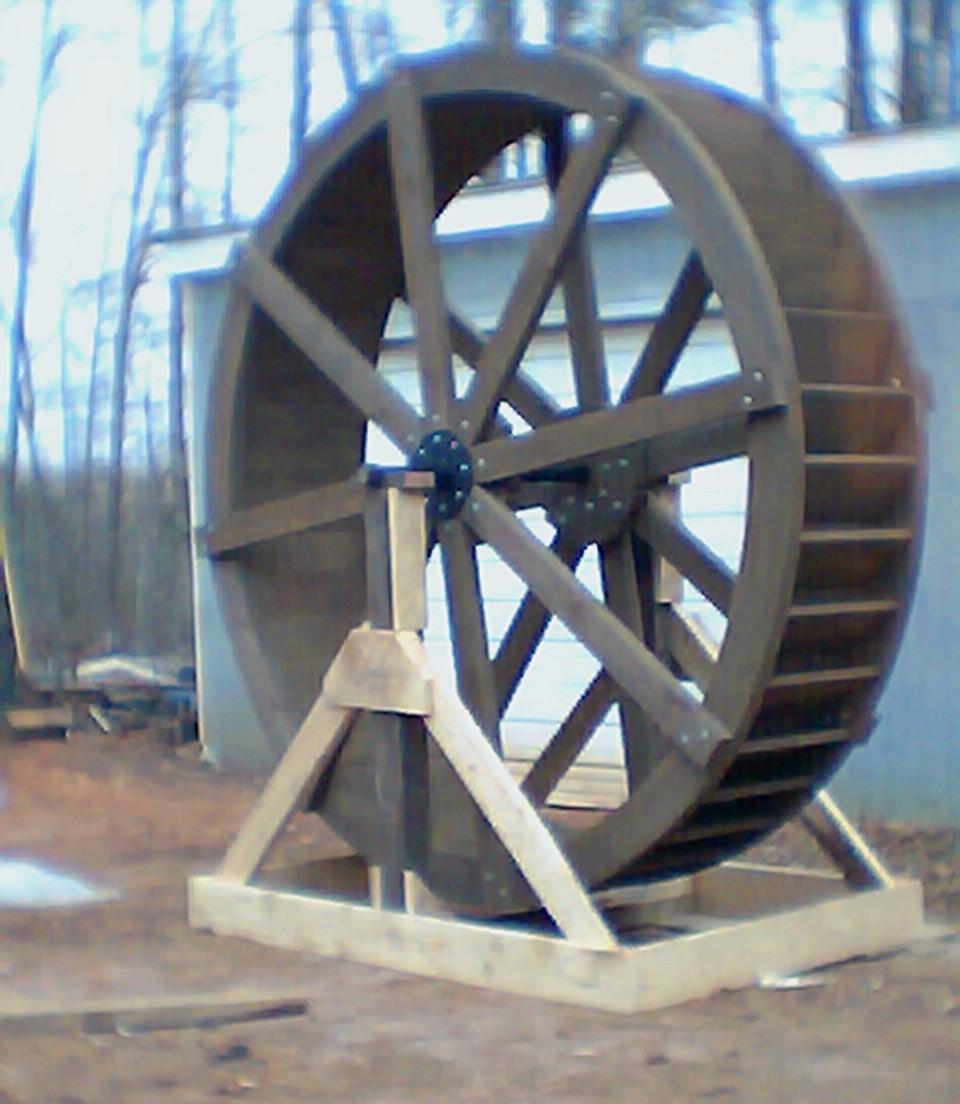

All bolts are tightened. Hubs
are fastened and locked down.
Kit Assembly
Sullivan
Sullivan'
WaterWheels
WaterWheels
..Home      Product      About-Us       Contact-Us       Photo Album       Links        Barrels       Water Wheel Plans   & Parts
4ft  WaterWheel          6ft  WaterWheel         8ft  WaterWheel         10ft WaterWheel           12ft WaterWheel
4ft  Water Wheels

6ft  Water Wheels

8ft  Water Wheels

10ft WaterWheels

12ft WaterWheels

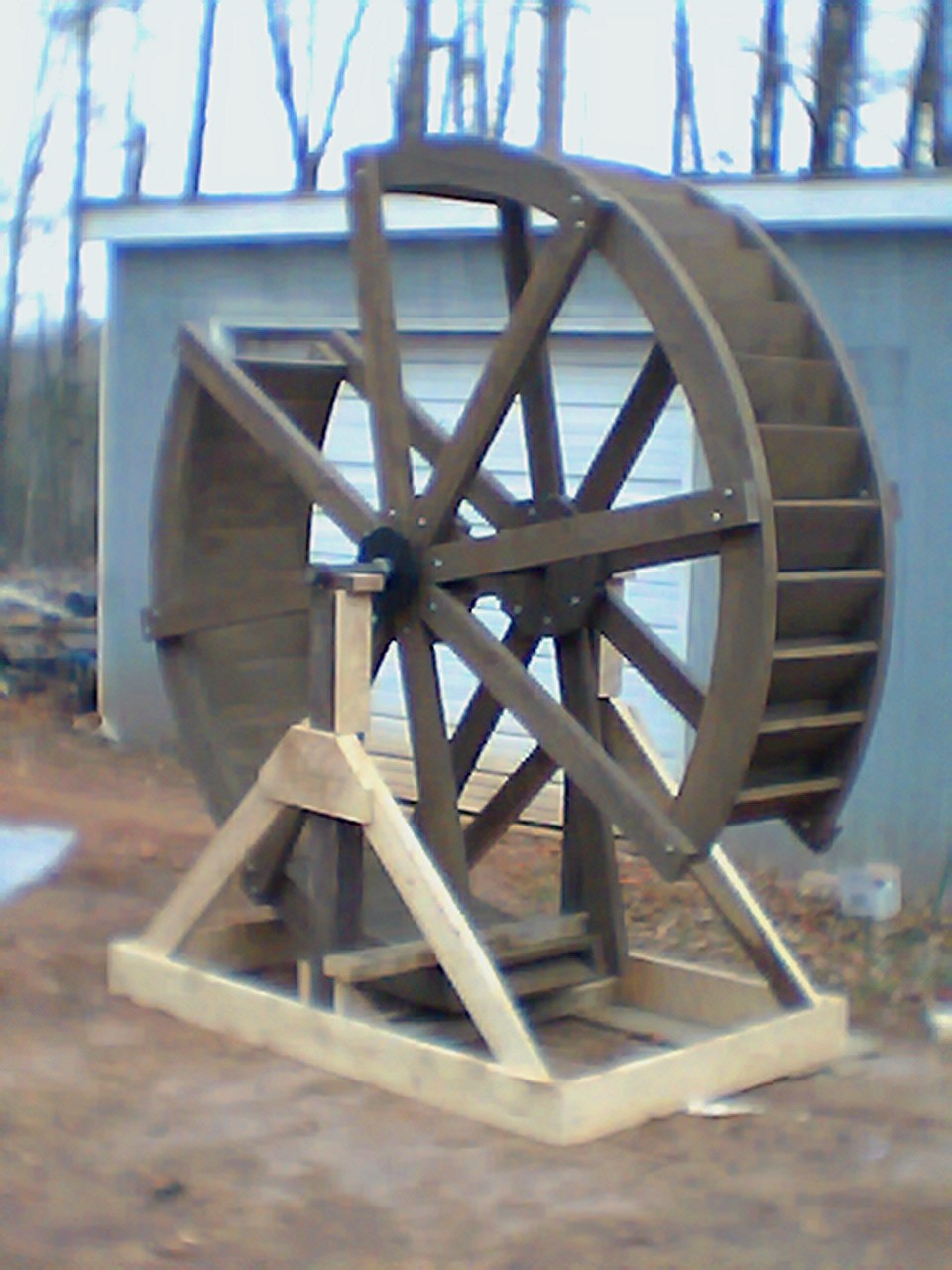

That's it!!!
Now Enjoy!
Pre-assembled kits installed in a day or less (we make it as easy as we can for you)
Here at Sullivan's waterwheels we make  buying and installing as easy as we can for you. With our pre-assembled kits theres no need for a crane
or   forklift for installation.  Our water wheels are designed to be assembled on the stand, so when your finished with the assembly,  it's ready to
turn. , we have broken them down in 8 sections for easy reassembly.
In most cases, 2 people can reassemble in 2 to 4 hours!
